DLF-220S Dual Plotter Digital Label Finisher
Top Uses & Applications
Increased speed meets ultimate versatility
The DLF-220S Dual Plotter Digital Label Finisher integrates unwinding, laminating, contour cutting, waste removal, slitting, and rewinding within a unified process. Designed for on-demand, short-run label finishing, the system incorporates two plotter cutters to optimize cutting efficiency. This feature not only enhances production speed, but also to offers cost-effective operation for businesses looking to manage diverse label finishing demands.
- 2X plotters for increased speed
- Cut from a digital file (no dies)
- Tabletop consolidated form factor
- Ideal for short runs & proofing
DLF-220S Dual Plotter Details

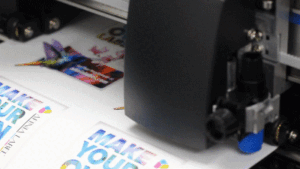

Dual Cutting Advantage
Incorporating two plotters, the DLF-220S focuses on efficiency. By dividing the task between the two plotters—one for each half of the labels—movement is minimized, resulting in an optimization of the cutting process. In most cases, this leads to a speed increase of over 2x.
Compact and Efficient Design
Despite its desktop design, the DLF-220S is equipped to manage varied paper and plastic films, delivering precision cuts while ensuring minimal wastage, making it particularly advantageous for short runs.
Economic Benefits
This finisher operates on a digital workflow, removing the requirement for die plates, which translates to operational cost savings. Moreover, it offers the flexibility to modify the label’s shape, size, and quantity as per demand.
Software and Synchronization
The integrated software, paired with CCD cameras, fine-tunes cutting positions. The ease of importing a PDF cutting file further simplifies this process, allowing for on the fly adjustments and quick job changes.
Why Choose Dual Plotter
For diverse layout requirements, the dual plotter’s synchronized functionality offers a distinct advantage over double-head systems, ensuring that both plotters remain actively engaged, optimizing output.
Compatibility
The DLF-220S seamlessly integrates with printers such as the Afinia L901 or Afinia L801. This compatibility ensures that labels printed on continuous material can be easily transitioned to finishing with the DLF-220S.
Enhanced Production and Workflow
This model stands out in its ability to accelerate production without compromising on costs. Its state-of-the-art optical sensor is designed to prevent errors, and its user-friendly design promotes time and cost efficiency.
Simplified Processes
The DLF-220S challenges traditional limitations, allowing users to control their label production, reduce wait times, and manage stock. With lamination options and efficient full bleed label production, it encapsulates a holistic approach to label finishing.
Specifications
DLF-220S Dual | |
|---|---|
| Input / Output Roll Diameter | 7.87" (200mm) |
| Maximum Web Width | 8.86" (225mm) |
| Minimum Web Width | 4.25” (108mm) |
| Maximum Cutting Width | 7.87" (200mm) |
| Maximum Label Length | 13.77" (350mm) with limitations |
| Minimum Label Length | 0.39" (10mm) |
| Number of Slitting Blades | up to 8 |
| Minimum Slitting Width | 0.75" (19mm) |
| Lamination Module | Yes |
| Maximum Media Thickness | 0.01" (0.25 mm) (10 mil) |
| Maximum Cutting Speed | 24in/s (600mm/s) in all directions |
| Roll Core Size | 3" (76mm) |
| Agency Certifications | CE, FCC, RoHS |
| Dimensions | L = 172 cm (67.71”) H = 75 cm (29.52”) W = 78 cm (30.7”) |
| Computer Requirements | Software running with Windows 8.1 or later Not supported by macOS PC needs 2 USB ports for plotters |
| Power Requirements | 100-240 VAC, 240 watts |
| Programmable Cut Force | 20 gf - 300 gf in 31 steps (Max 300 gf) |
| Warranty | Two Years Parts and Labor. Usage Limitation may apply |
| Afinia part numbers | DLF-220S: 40303 |
