X350 Digital Roll to Roll Press
Top Uses & Applications
Introducing the X350 Digital Roll to Roll Press
The X350 Digital Label Press offers a practical solution for high-volume digital roll to roll printing needs. It combines speed, versatility, low ink costs, and a compact design to fit into any production environment efficiently. With a capability of up to 45 meters per minute and a media handling breadth of 350mm for both roll diameter and width, it’s equipped to manage various printing tasks with ease. The X350 Digital Label Press is designed for straightforward integration into production lines, requiring less than 1 sqm of space.
Ideal for printing on a range of materials, including die-cut and continuous labels, as well as flexible packaging, the X350 aims to support a variety of product applications without compromising on print quality or operational efficiency.
The X350 digital label press is also built with user-friendly software and quick-change printheads, enabling operators to reduce downtime and increase productivity. Its compatibility with eco-friendly water-based inks makes it a forward-thinking choice for companies looking to reduce their environmental impact while maintaining exceptional colour consistency and sharp detail. Whether you’re scaling up production or diversifying label offerings, the X350 provides the flexibility and performance you need to stay competitive.
Discover how the X350 can fit into your workflow and help meet your printing demands in the details below.
- Durable and Food-safe* CMYK inks
- Small footprint, low energy usage
- Up to 45m/min print speed
- Print labels or flexible packaging films
* Food migration tests PASSED
X350 Details
Versatile Capabilities
The X350 Digital Roll to Roll Press offers versatile and efficient solutions for your printing needs, perfect for handling a variety of projects such as continuous labels, die-cut labels, and flexible packaging materials. Designed to enhance your printing capabilities, the X350 enables you to confidently embrace new and diverse projects with ease.
Durable and Food-Safe Inks
At the heart of the X350’s performance are its durable pigment inks. These inks are not only BS 5609 certified, indicating they meet stringent standards for maritime shipment label durability, but they are also resistant to water, UV, and other elements, ensuring your prints last longer. Moreover, they are safer for indirect food contact (having passed migration tests) and are more environmentally friendly than traditional solvent-based inks. This makes the X350 an ideal choice for food packaging and businesses aiming for eco-conscious practices.
High-Volume Capability
The X350 boasts large ink tanks, each capable of holding 2L of CMYK ink. Its ability to accommodate a 350mm max media width and a 350mm max outside diameter endows the X350 with the capacity for larger runs, significantly boosting productivity.
Energy and Space Efficient
This press’s energy-efficient design sets a new standard, maintaining high performance while significantly reducing energy consumption compared to competitor machines. Additionally, its compact and straightforward design occupies only about 0.7 square meters of space, making it an excellent choice for operations where floor space is at a premium.
Supreme Print Quality
A standout feature of the X350 is its 2x nozzle redundancy. This advanced technology minimizes lines and aids in producing smooth colors and gradations, ensuring reliability and reducing maintenance needs.

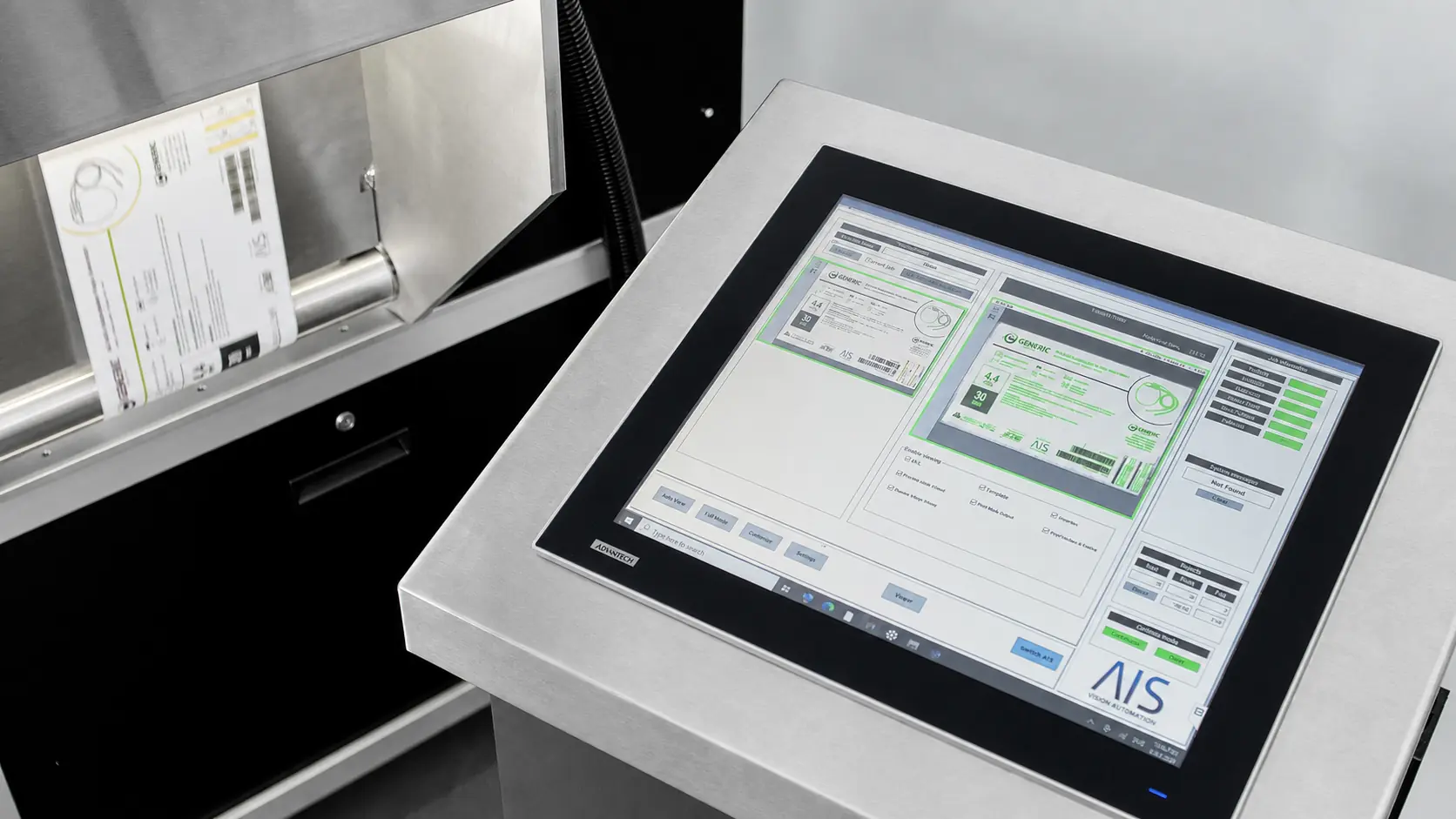

Touchscreen and RIP
The printer’s user-friendly interface features a 21-inch touchscreen, packed with advanced options and remote connectivity for convenient management of printing jobs from anywhere. Combined with powerful cloud-based RIP software, the X350 simplifies your printing process, providing precise control and variable data capabilities for a streamlined workflow and greater flexibility.
Finishing Options
Most Flexible: DLF-350L Dual Digital Finisher
A digital label finisher gives you the ability to cut any shape label from a simple PDF file. Dual plotter cutters work simultaneously to cut label outlines at over twice the speed of previous models. This option is ideal for those who need to create a large variety of sizes and shapes.
Fastest: DC350 Semi-Rotary Die Cutter
Die cutting uses flexible steel plates that are pressed into label material to cut shapes. Dies can be removed and changed to create different label sizes and shapes. This option is best for those who have up to around 10 known sizes and shapes.
Most Capable: LZ350 Laser Finishing System
Laser finishing combines the flexibility of digital finishing with the speed of die cutting to cut labels with a laser at high speeds and with incredible accuracy. This option is more expensive, but best for those who need to be able to cut any size and shape and produce finished rolls quickly.
Optional Inline Slitter Attachment
Optional Inline Slitter AttachmentSlit multiple-up labels down to narrow, separated rolls with the X350 inline slitter attachment. This add-on unit bolts onto the output rewind to make slitting pre-die cut labels easy and efficient.
Ready to Elevate Your Printing Operations?
Discover the full potential of the X350 and how it can revolutionize your printing workflow. Contact us for pricing details and request a free printed sample to firsthand experience the unparalleled quality and capabilities of the X350. Whether you’re in the business of producing high-volume labels, flexible packaging, or any project requiring supreme print quality and efficiency, the X350 is designed to meet your needs.
Also, check out X350 Frequently Asked Questions
Specifications
Ink type | Aqueous inkjet — Pigment |
|---|---|
| Ink capacity | 2L per tank (CYMK), 8L total |
| Printhead | 2x nozzle redundancy; User-replaceable |
| User interface | 21" Touch Screen |
| RIP software | Basic RIP included; Optional modules available |
| Print width | 12.77 in (324.4 mm) |
| Print speed | Variable, Up to 29.5 in/sec (45 m/min) |
| Print resolution | Up to 1600x1600 dpi |
| Overall dimensions: | 28” (711mm) W, 40" (1016mm) D, 63" (1600mm) H |
| Media width | Min: 2 in (50 mm); Max: 13.75 in (350 mm) |
| Media thickness | Min: 2 mil (0.05 mm); Max: 13.75 mil (0.35 mm) |
| Media type | Gap (die cut), Black mark, Continuous |
| Input roll max diameter / weight | 13.75 in (350 mm) / 154 lbs (70 kg) |
| Air requirements | Ultra-quiet compressor included (integrated) |
| Power | Single phase 220V, 12A |
| Web slitters | Optional add on |
| Operating temperature | 59–95 °F (15–35 °C) |
| Storage temperature | Machine: -13–140 °F (-25–60 °C); Printhead / Inks: 23-113 °F (-5 to 45 °C) |
| Humidity | 35-80% RH |
| Applications | Labels, Flexible packaging |
